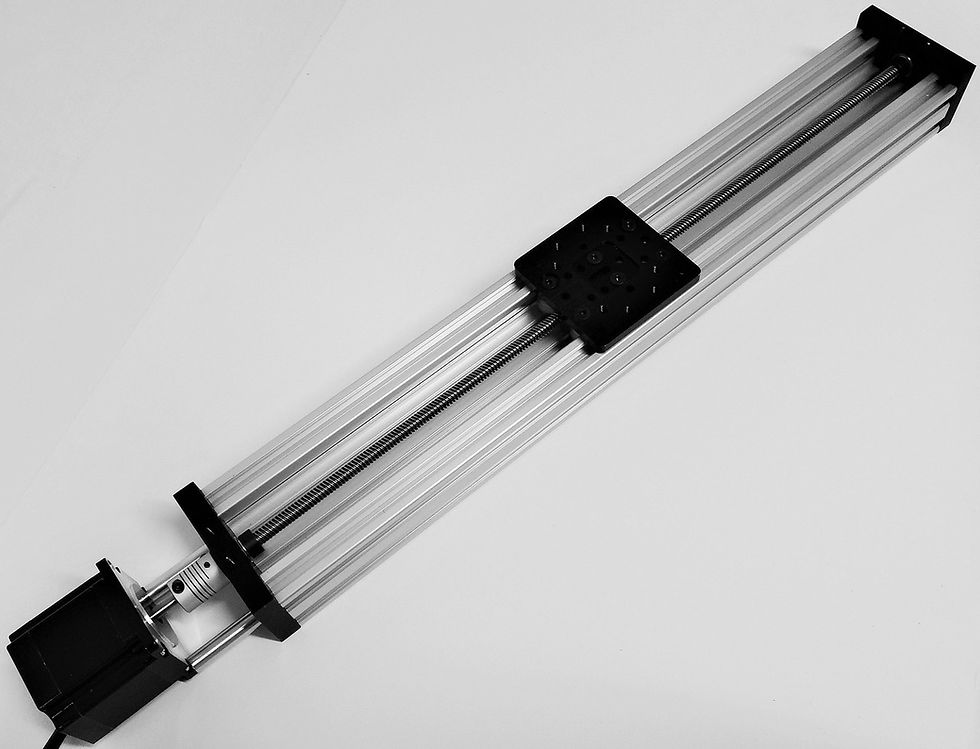

    C-Beam™ Linear Actuator Bundle
    You now have access to utilize the power of beams in your builds!

    C-Beam™ Linear Actuator Bundle

    C$124.60Price
    • C-Beam is a profile based on the popular V-Slot linear guide system. It incorporates a C shape profile which gives added strength and functionality.

      • Since C-Beam is a product of the V-Slot line all standard V-Slot parts and accessores are compatible! Of course, like V-Slot, every side of C-Beam can be used a linear guide.
      • C-Beam is available in multiple lengths and comes pre-tapped  with 4 holes ready to accept C-Beam end mounts. This allows you to quickly create C-Beam linear actuators.
      • You can add multiple plates for added precision and strength.
      • You can use any of the V-Slot gantry plates with C-Beam.
      • You can even 3D Print your own parts to produce customized creations.
      • C-Beam is extremely modular which allows for practically unlimited mounting possibilities and build configurations.

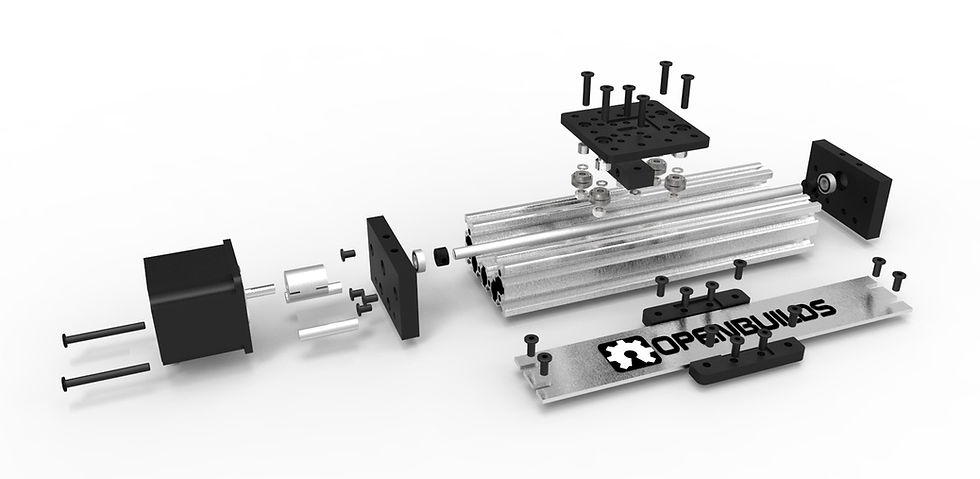

      Whats included in your C-Beam Actuator Bundle Pack?

      Every part you need to build your C-Beam Linear Actuator is included (Nema 23 Stepper Motor Optional)!

      Quantity SKU Description

      4 SKU S006 Low Profile Screws M5 – 25mm
      2 SKU A005 Aluminum Spacers - 6mm
      2 SKU A009 Aluminum Spacers - 40mm
      1 SKU M022 1/4" x 8mm Flexible Coupling
      2 SKU A004 Aluminum Spacers - 3mm
      2 SKU M003 Eccentric Spacers
      1 SKU M017 Anti-Backlash Nut Block for 8mm Metric Acme Lead Screw
      2 SKU BR002 Ball Bearing 688Z 8x16x5
      2 SKU A015 8mm Shim
      2 SKU M012 Lock Collar - 8mm
      4 SKU W011

      Xtreme Mini V Wheel Kit

      1 SKU E0031

      Nema 23 Stepper Motor (Optional)

      10 SKU S005 Low Profile Screws M5*20
      2 SKU S012 Low Profile Screws M5*55
      2 SKU P019 C-Beam End Mount
      1 SKU P026 C-Beam Gantry Plate
      1 Choose Length C-Beam Linear Rail
      1 Choose Length  8mm Metric Acme Lead Screw

      Tools Required for the build

      • 3mm /1.5m Allen key
      • 8mm/10mm wrench
      • Fine grit sand paper

      Travel Lengths

      We like to leave a little room from the ends (about 10mm)

      • Travel for the 250mm version is 150mm
      • Travel for the 500mm version is 400mm
      • Travel for the 1000mm version is 900mm

      We think you will agree C-Beams are awesome and we look forward to all of the wonderful builds you create with them!
