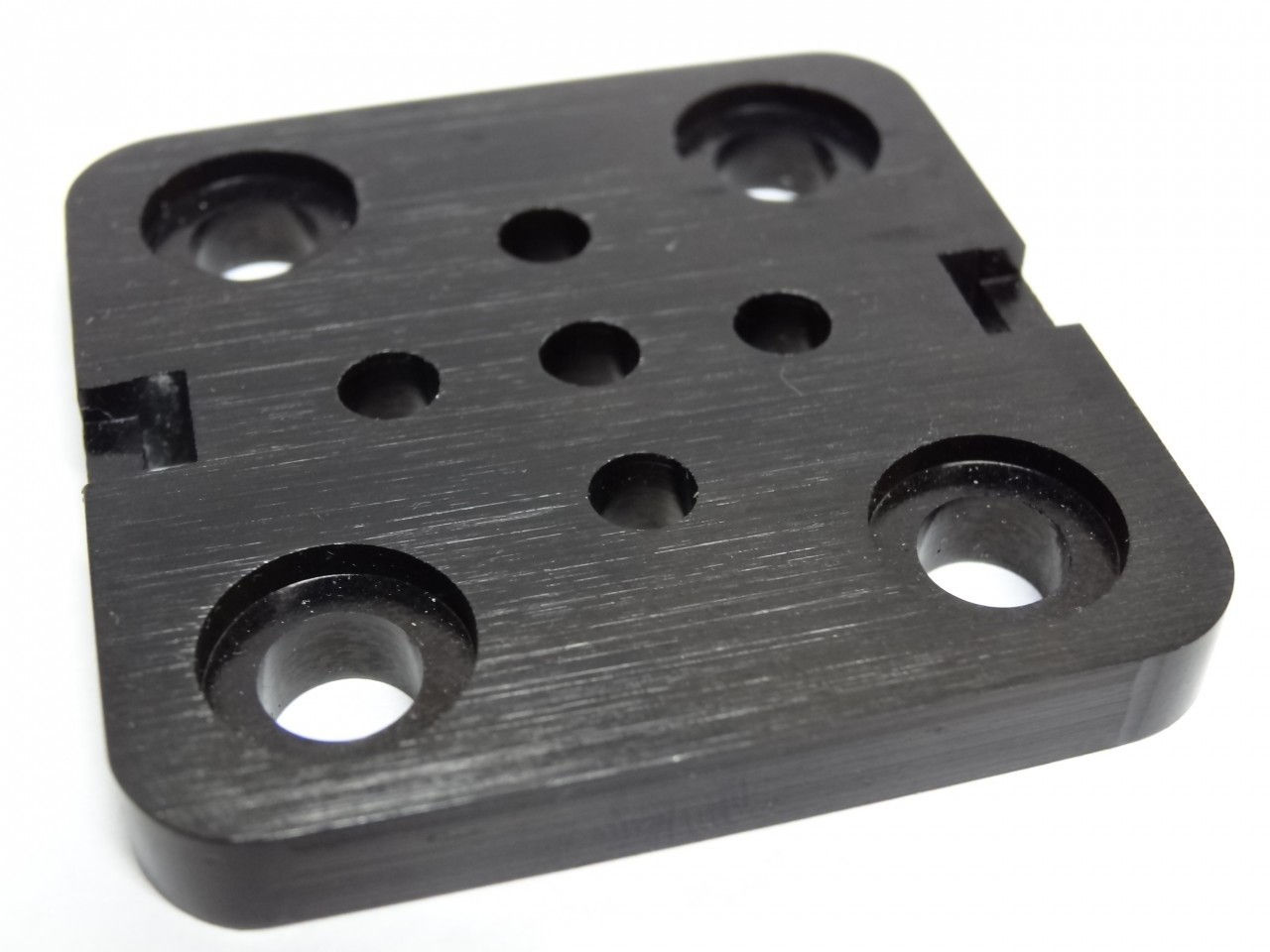

This is the awesome little plate for the Mini V linear guide system using the OpenBuilds Mini V Wheels and the Xtreme Mini V Wheels.
It's super strong and has a small form factor.
This plate has the mounting pattern to allow for end to end mounting that makes up the Mini V system. This opens the door to endless machine creation!
Part Details
- Dimensions: 50 x 50 x 6.35mm 'thick'
- 6063-T6 Aluminum Black Anodized Brushed Finish
- Belt loop side notched for 1/4" belt
- Recessed Screw holed for post flush mount
This video shows the Mini V plate being assembled for a Mini V Actuator Build
