These are the V-Slot Gantry Plates.  They are available in two sizes.

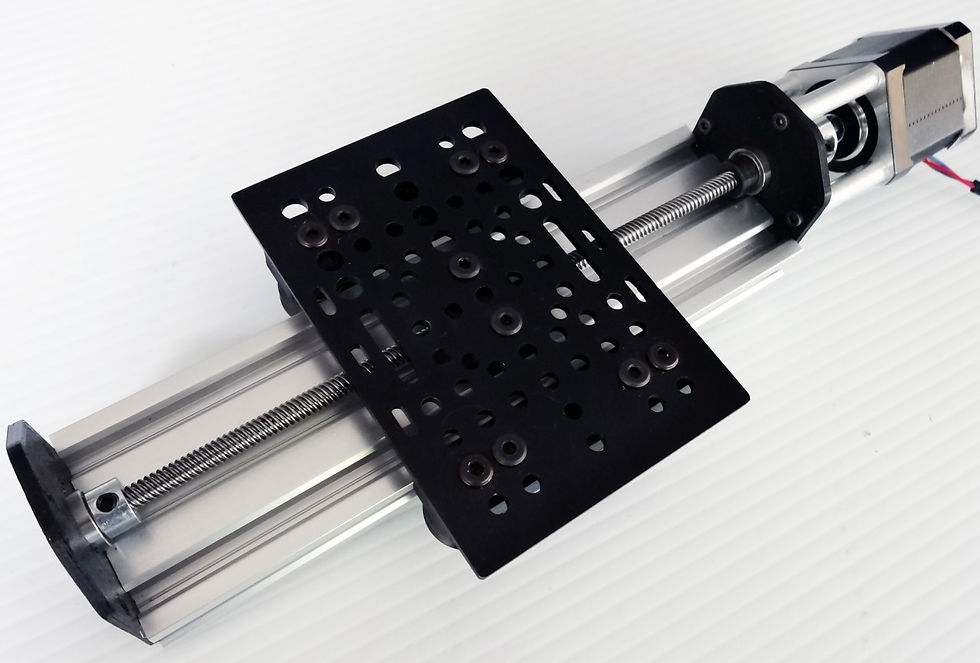

V-Slot™ Gantry Plates

  • These are the V-Slot Gantry Plates.  They are available in two sizes.

    - Universal (20mm - 80mm) - This plate was designed to fit on all standard V-Slot sizes.  It's a great plate to have and use on your builds!

    - 20mm - This plate was designed to be used when a smaller, lighter plate is desired on the 20mm side of V-Slot. This plate is great when full size wheels are preferred along with a smaller foot print needed.

    We want to ensure that we simplify belt clamping so we have incorprated 'Fold-Through' Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.

    We have also added two 5mm slots that allow you to attach spacers for 90 degree belt mounts under or on top of the plate as well.

    This simplifies the overall building process and allows for quick assembly times of motion systems.

    NOTE: There are a lot of possible mounting configurations for these plates so please be sure to look at all the example model builds.

    Gantry Plate Only
    6063-T6 Aluminum
    Black Anodized Finish
    3mm~ (1/8") Thick

    ** Please note - this plate was designed to be used with V-Slot and is not comptible with OpenRail.
