Screw-driven linear motion systems are desired for high thrust, stiffness and tight precision in high-load, moderate-speed applications.

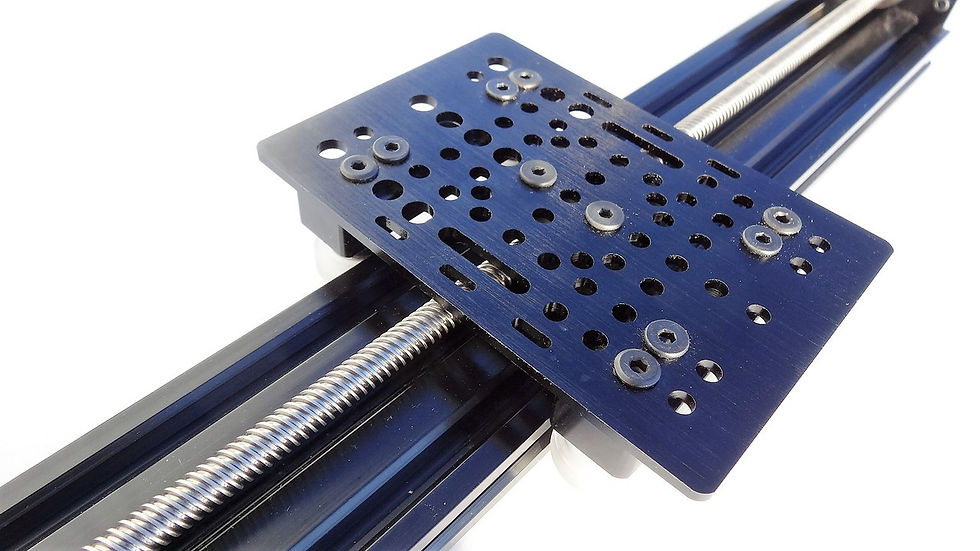

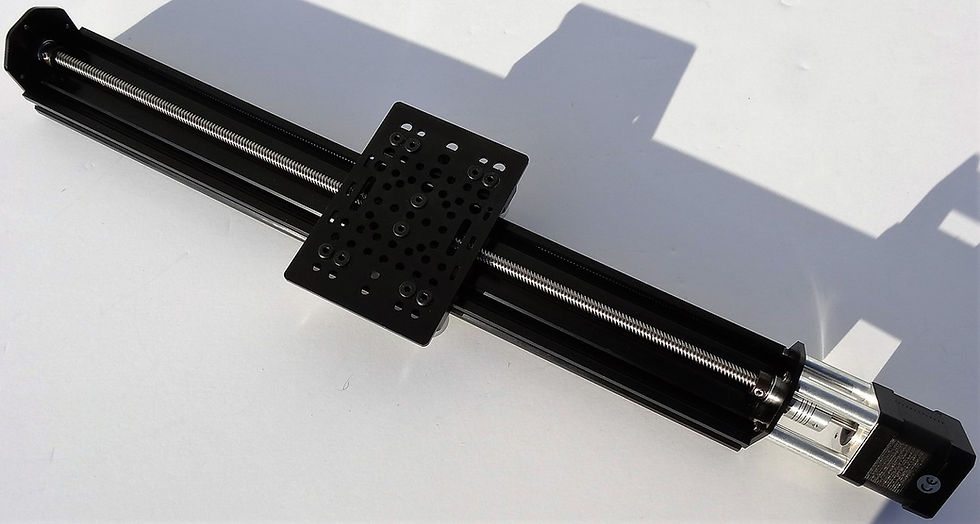

V-Slot NEMA 17 Linear Actuator Bundle (Lead Screw)
V-Slot™ NEMA 17 Linear Actuator Bundle (Lead Screw)
Screw-driven linear motion systems are desired for high thrust, stiffness and tight precision in high-load, moderate-speed applications.
Easy to Follow Build-Along Video!
V-Slot NEMA 23 Linear Lead Screw Driven Actuator - Installation Video
Travel Lengths
We like to leave a little room from the ends (about 10mm)
With the width of the gantry plate the travel will be approx
100mm less of the actuator lenght.[- Travel for the 250mm version is 150mm
- Travel for the 500mm version is 400mm
- Travel for the 1000mm version is 900mm
What's in the Bundle?
Qty. SKU Description 2 A005 Aluminum Spacer - 6mm 3 A009 Aluminum Spacer - 40mm 4 S009 Low Profile Screws - 40mm 6 S004 Low Profile Screws - 15mm 1 M021 5 x 8mm Flexible Coupling 4 A004 Aluminum Spacer - 3mm 2 M001 Eccentric Spacer 4 W003 Xtreme Solid V Wheel Kit 2 P004 Spacer Blocks 1 P002 V-Slot Gantry Plate (Universal) 4 S021 Self Tapping Screw 3 S016 M3 Cap Head Screws - 45mm 2 BR002 Ball Bearing 688Z 8x16x5 2 A015 8mm Shim 2 M012 8mm Lock Collar 2 P006 Threaded Rod Plate (Nema 17) 1 M017 Anti-Backlash Nut Block for 8mm Metric Acme Lead 1 E0021 NEMA 17 Stepper Motor (Option) 1 V-Slot 20mm x 60mm Length Varies by Selection 1 Lead 8mm Metric Acme Lead Screw (Length Varies by Selection) I’m a Return and Refund policy. I’m a great place to let your customers know what to do in case they are dissatisfied with their purchase. Having a straightforward refund or exchange policy is a great way to build trust and reassure your customers that they can buy with confidence.
